Description

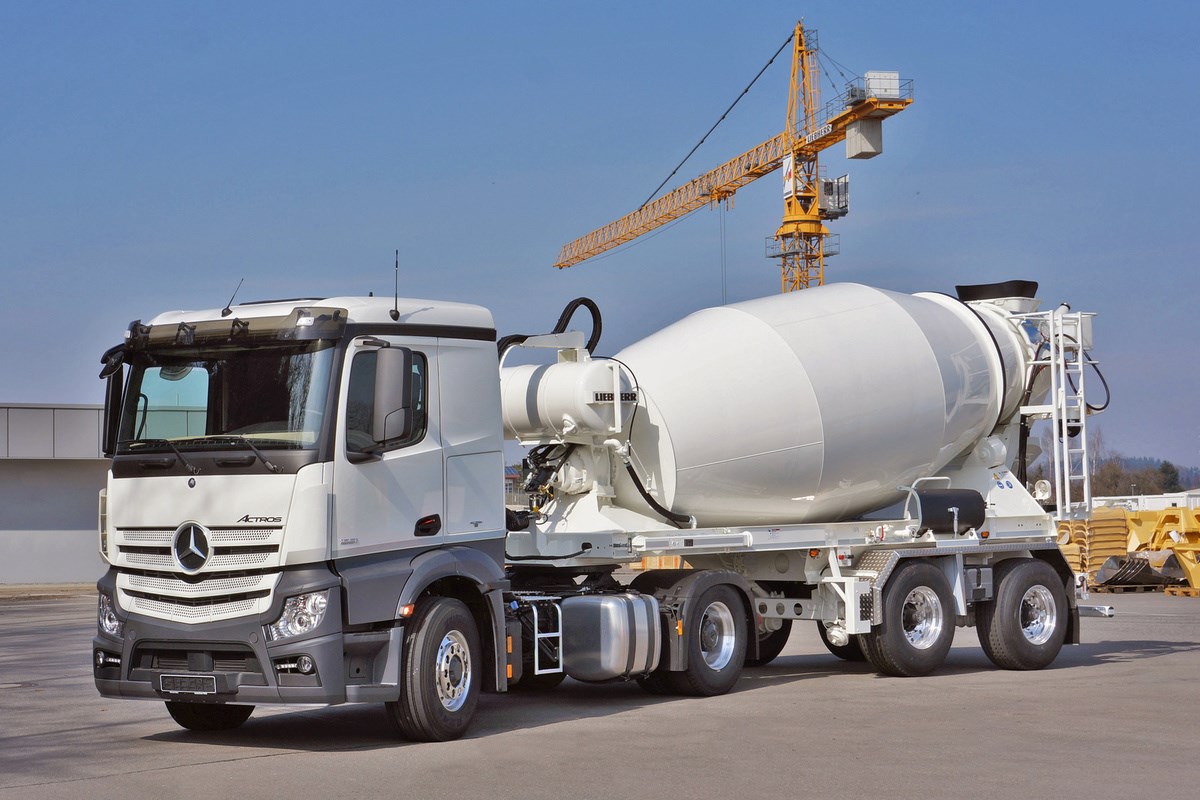

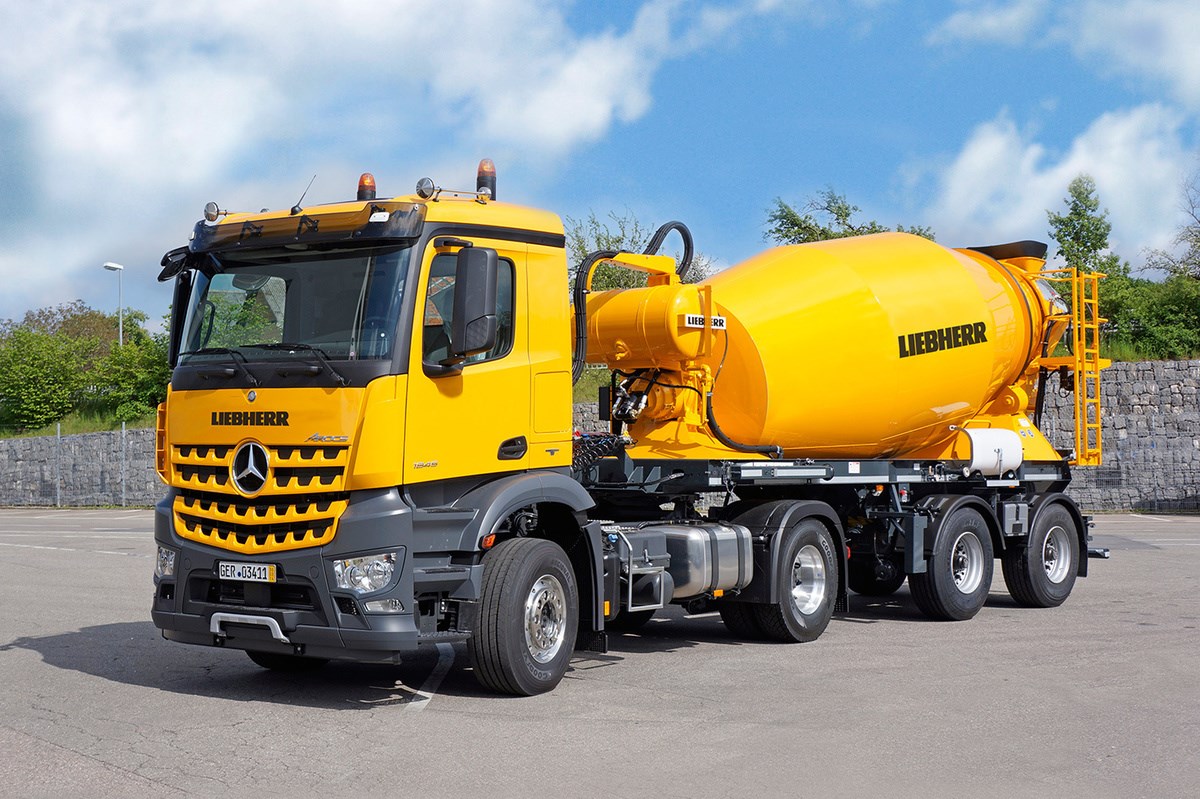

HTM 1004 T

Truck mixer

The HTM 1004 is impressive as a trailer, with high driving stability due to the low centre of gravity and low body weight.

— Technical data.

Nominal filling *                                        10 m³
Water capacity **                                    11.05 m³
Geometric drum capacity                       17.64 m³
Clearance height without frame            3,907 mm
Hopper filling height without frame      3,817 mm
Assembly weight Standard ***              7,290 kg
Additional weight separate motor        900 kg

* Nominal filling in compacted mixed concrete.

** Measured in accordance with DIN 459-1 at min. 2 drum rotations per minute. The given values for capacity and water volume only apply to a horizontally aligned mixer frame. A deflection of the frame during loading is not taken into account here and may negatively affect the water volume under certain circumstances. The real maximum filling capacity with concrete depends on the consistency and the rheological characteristics of the concrete. The topology of the road and the driveability also influence the maximum loading volume.

*** Weight details for basic unit with chassis power take-off (PTO), incl. 2 extension chutes, compl. assembled/ready for operation, deviations +/- 5%.
