HTM 1504

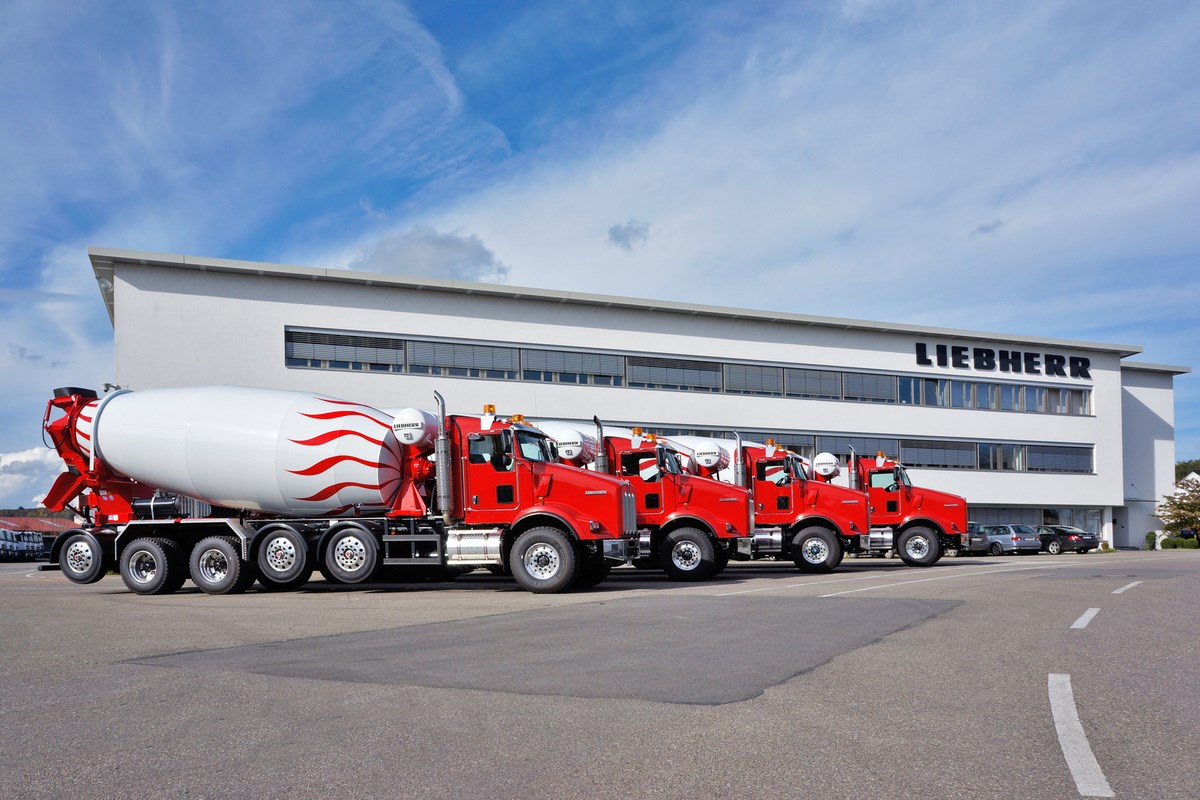

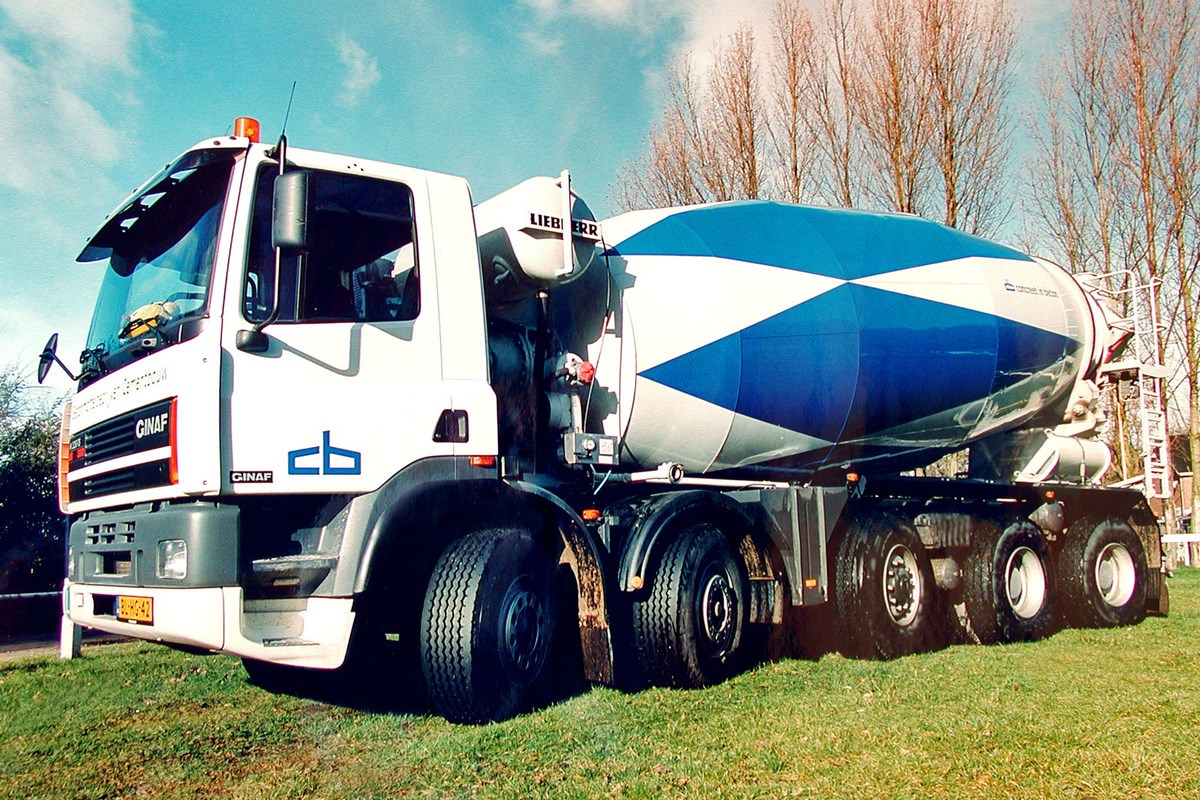

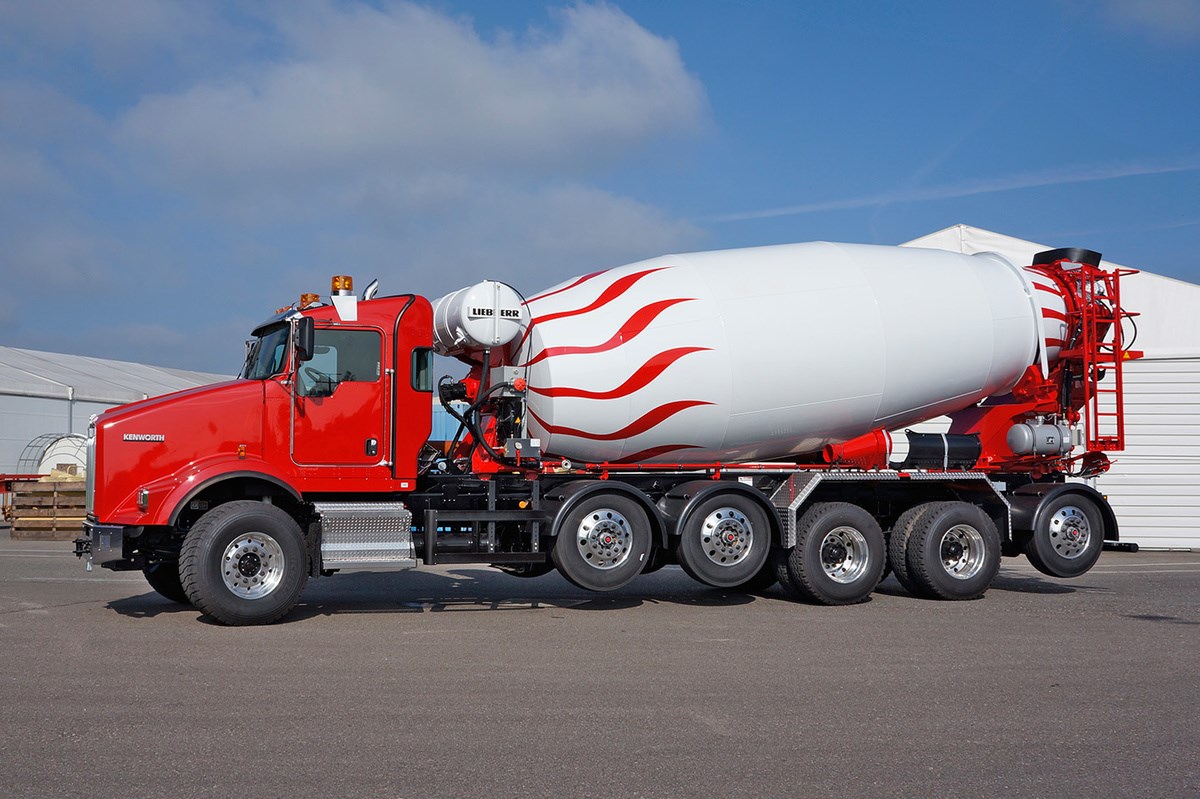

Truck mixer

The HTM 1504 offers maximum transport capacity and allows for economic concrete transport by using sturdy, long-lasting components.

— Technical data.

Nominal filling *                                      15 m³
Water capacity **                                   15.30 m³
Geometric drum capacity                      24.45 m³
Clearance height without frame           2,679 mm
Hopper filling height without frame     2,576 mm
Assembly weight Standard ***              5,600 kg

* Nominal filling in compacted mixed concrete.

** Measured in accordance with DIN 459-1 at min. 2 drum rotations per minute. The given values for capacity and water volume only apply to a horizontally aligned mixer frame. A deflection of the frame during loading is not taken into account here and may negatively affect the water volume under certain circumstances. The real maximum filling capacity with concrete depends on the consistency and the rheological characteristics of the concrete. The topology of the road and the driveability also influence the maximum loading volume.

*** Weight details for basic unit with chassis power take-off (PTO), incl. 2 extension chutes, compl. assembled/ready for operation, deviations +/- 5%.
