LB 16 unplugged

Description

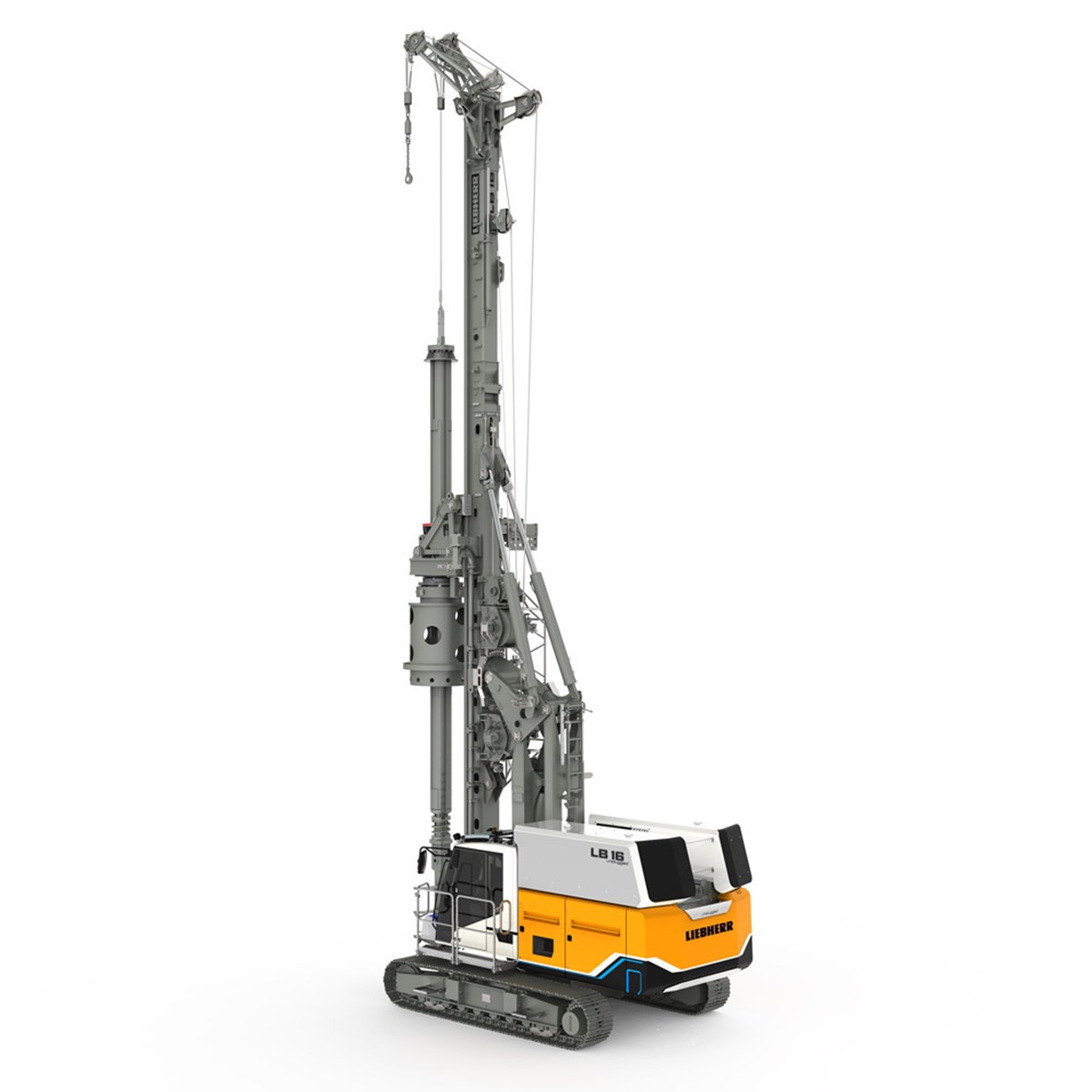

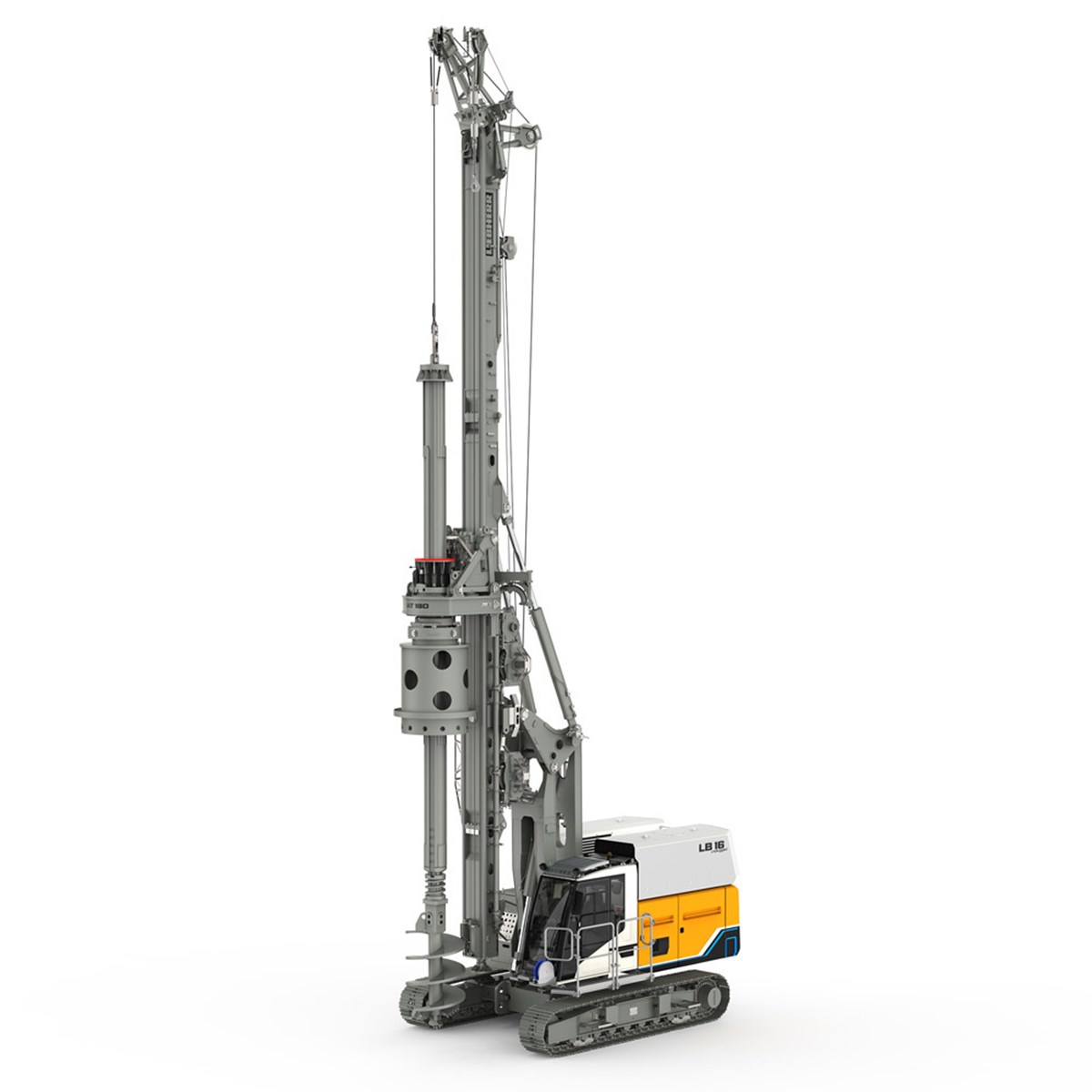

LB 16 unplugged

Drilling rig

The LB 16 unplugged is the first battery-powered drilling rig in the world. With the electro-hydraulic version, Liebherr presents the deep foundation machine with alternative drive concept. The brand-new Liebherr model is operated by battery without a cable, therefore: unplugged. There are no restrictions in performance and application of the LB 16 unplugged when compared to the conventional version.

Features

Electric engine

The innovative Liebherr machine has an electric engine with a system power rating of 265 kW.

Battery
The battery is designed to last for a 10-hour working day and can be simply recharged using a conventional jobsite electric supply (32 A, 63 A). Using a 125 A supply, the battery can be fast-charged in barely 7 hours.

Local Zero Emission
The machine causes no local emissions and significantly less noise. Thus, the drilling rig is also suitable for operation in areas sensitive to noise.

Comfort
This includes a modern air-conditioning system with improved airflow, an optimized field of vision and reduced noise protection, as well as an orthopaedic operator’s seat with integrated heating and cooling.

Technical data

Operating weight 55.0 t
Max. torque 180 kNm
Max. winch line pull 160 kN
Max. crowd force 200 kN
Engine power 265 kW
Kelly drilling, max. drilling depth 34.5 m
Kelly drilling, max. drilling diameter 1,500 mm
Double rotary drilling, max. drilling depth 11.4 m
Double rotary drilling, max. drilling diameter 508 mm
Min. transport width 2,800 mm
Min. transport height 3,420 mm

Downloads

Accessories

Ground Pressure Visualization
The Ground Pressure Visualization calculates the current ground pressure of the machine in real time and compares it with the specified safety limits of the relevant jobsite.

Applications

Kelly drilling

Kelly drilling belongs to the most common dry rotary drilling methods. Soil and rock material is conveyed to the surface discontinuously with relatively short rotary drilling tools.
