LTM 1030-2.1
Mobile crane
Max. load capacity 35 t
Telescopic boom 30 m
Max. hoist height 44 m
Max. radius 40 m
Number of axles 2
Description
LTM 1030-2.1
Mobile crane
The LTM 1030-2.1 mobile crane, which was launched in 1997 with the name LTM 1030/2, was the first mobile crane in the world to feature data bus transfer technology. This innovative technology enables the 2-axle model to provide maximum functionality and reliability. The model has undergone continuous modification to ensure that it features the very latest mobile crane technology.
Max. load capacity 35 t
at radius 3.00 m
Telescopic boom from 9.20 m
Telescopic boom up to 30.00 m
Lattice jib from 8.60 m
Lattice jib up to 15.00 m
Drive engine/make Mercedes-Benz
Drive engine 6-Zylinder-Diesel
Drive engine/power 205 kW
Number of axles 2
Drive/Steering standard 4 x 4 x 4
Driving speed 80.00 km/h
Total ballast 5.50 t
Technical Data – Mobile crane LTM 1030-2.1 [m/t]
» PDF (1.3 MB) .
Technical Data – Mobile crane LTM 1030-2.1 [ft/lb]
» PDF (1.2 MB) .
Counterweight [t]

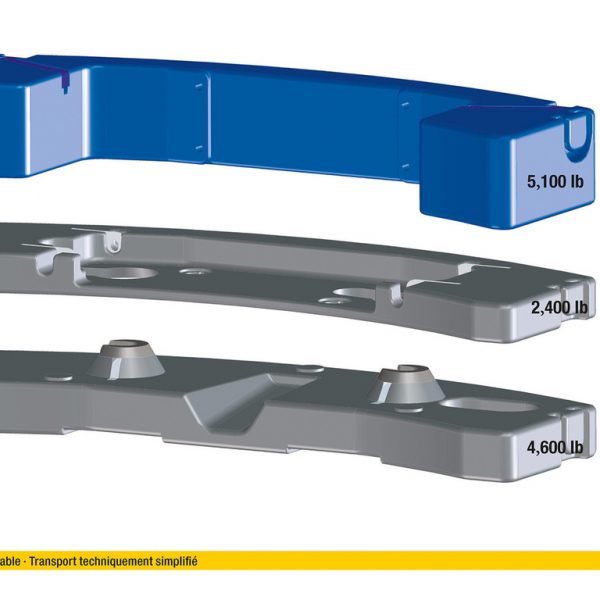

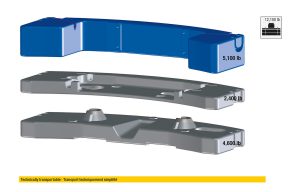

Counterweight [lb]
![On-road driving [t]](https://dam-trading.com/wp-content/uploads/2019/06/liebherr-lwe-ltm-1030-2.1-ballast-metrisch-600x600.jpg "liebherr-lwe-ltm-1030-2.1-ballast-metrisch")
On-road driving [t]
![On-road driving [lb]](https://dam-trading.com/wp-content/uploads/2019/06/liebherr-lwe-ltm-1030-2.1-strassenfahrt-metrisch-s3025-300x131.jpg)

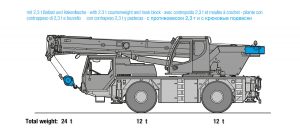

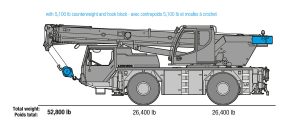

On-road driving [lb]
ECOmode
ECOmode minimises both fuel consumption and noise emissions when operating the crane superstructure. The crane operator sets the required working speed using the control lever. The LICCON 2 control system calculates the perfect engine speed for the diesel engine.
VarioBase®
VarioBase makes the crane’s support system variable. It enables each outrigger to be extended to a different length. This enhances safety – particularly in constricted spaces. And what’s more, the crane’s lifting capacities are significantly increased, particularly over the outriggers and depending on the configuration.
