LTM 1070-4.2
Max. load capacity 70 t
Telescopic boom 50 m
Max. hoist height 65 m
Max. radius 48 m
Number of axles 4
Description

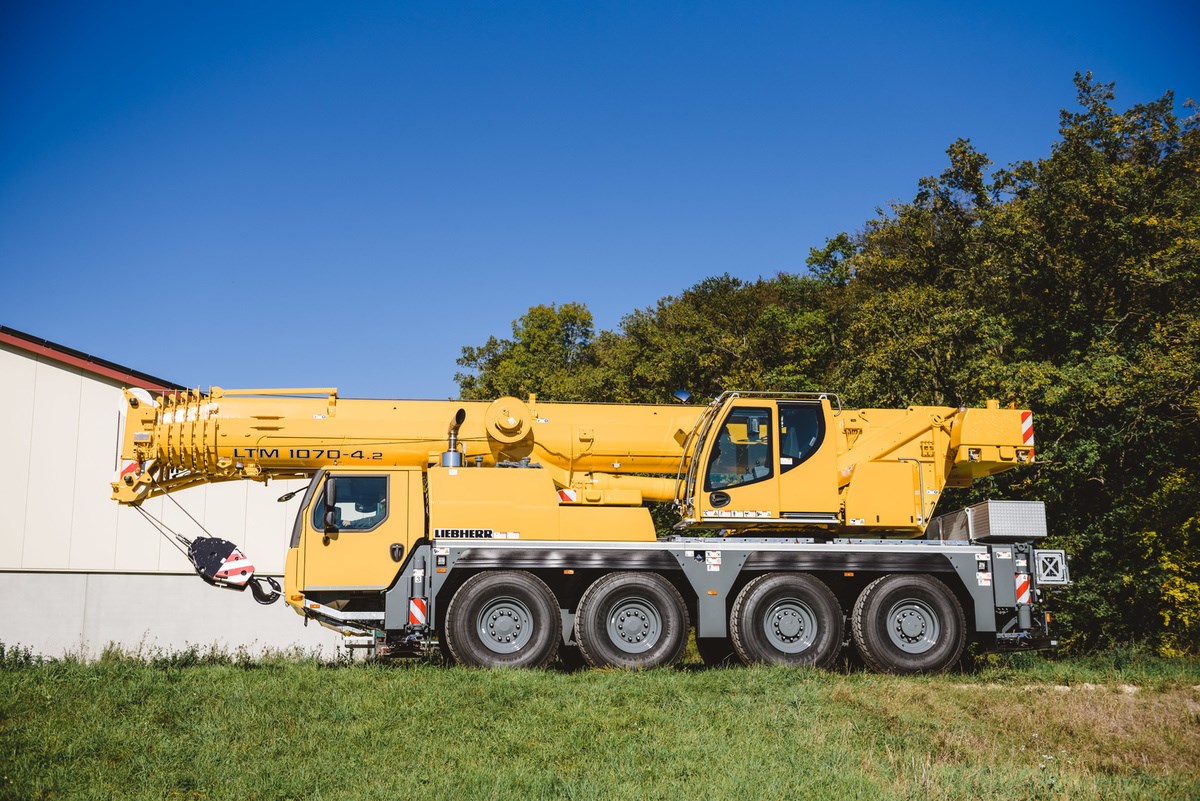

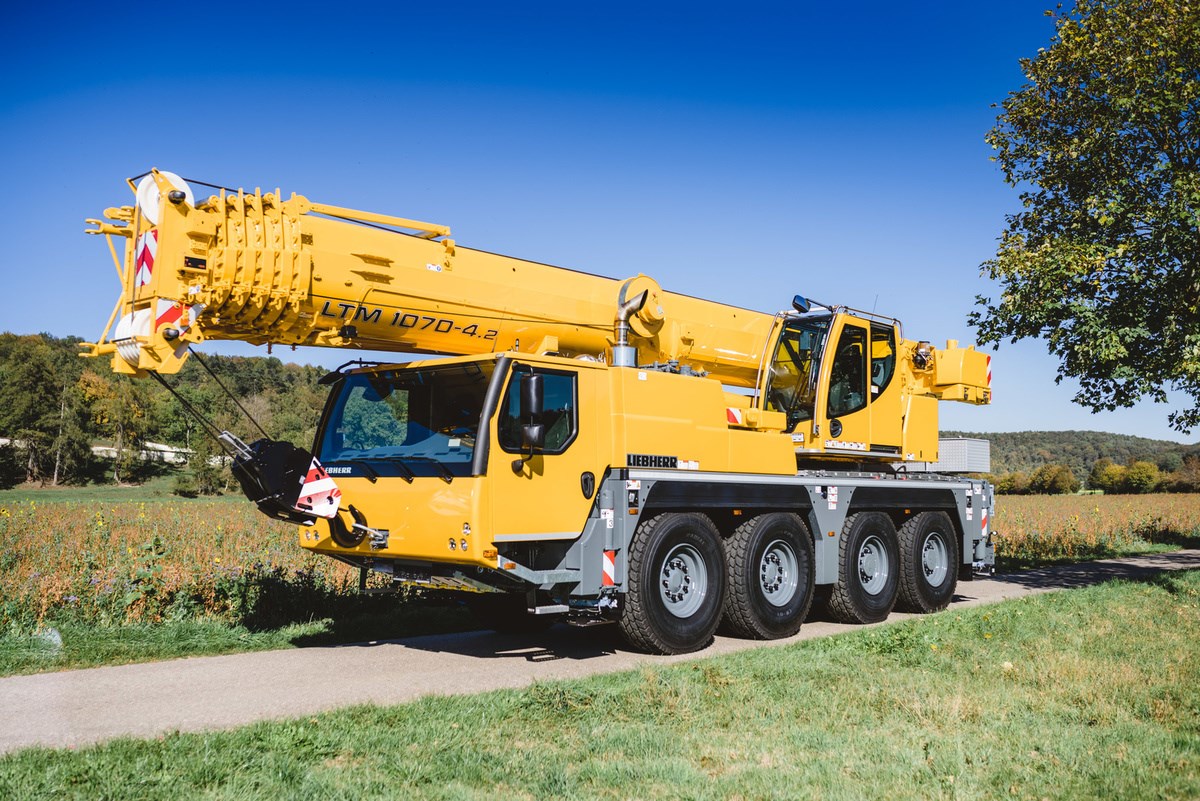

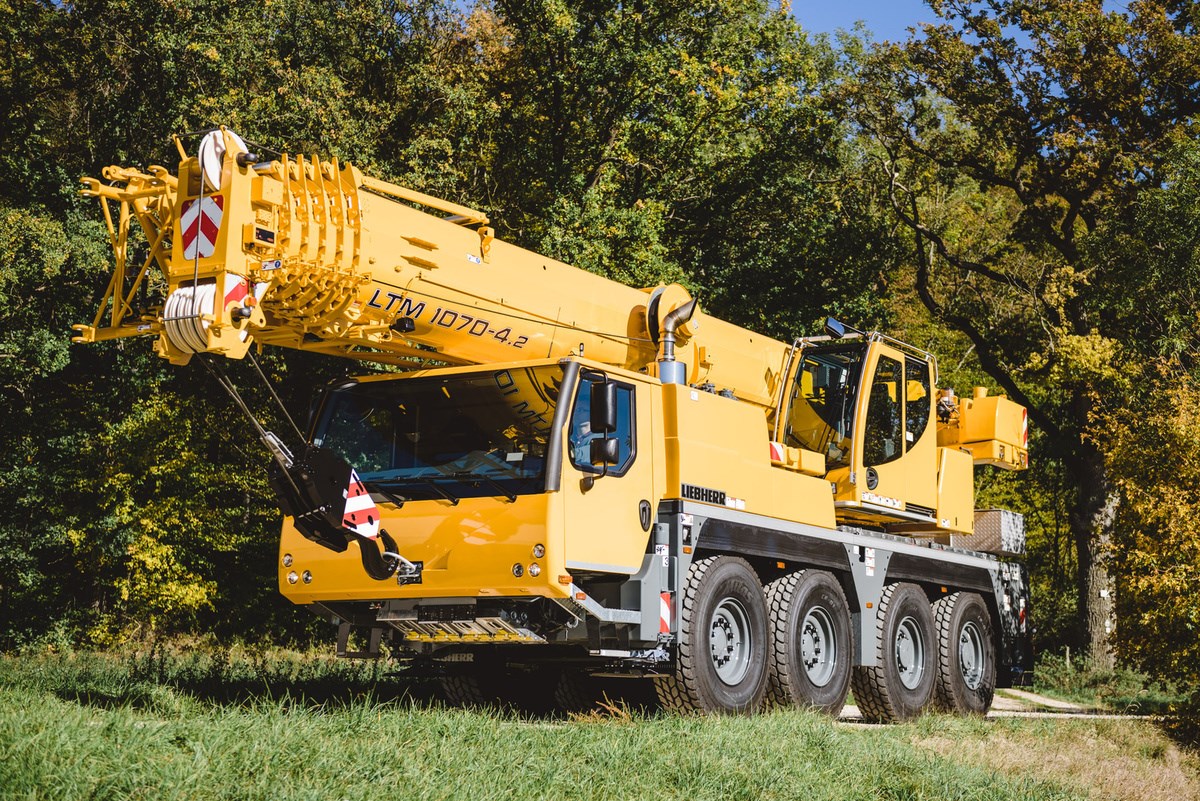

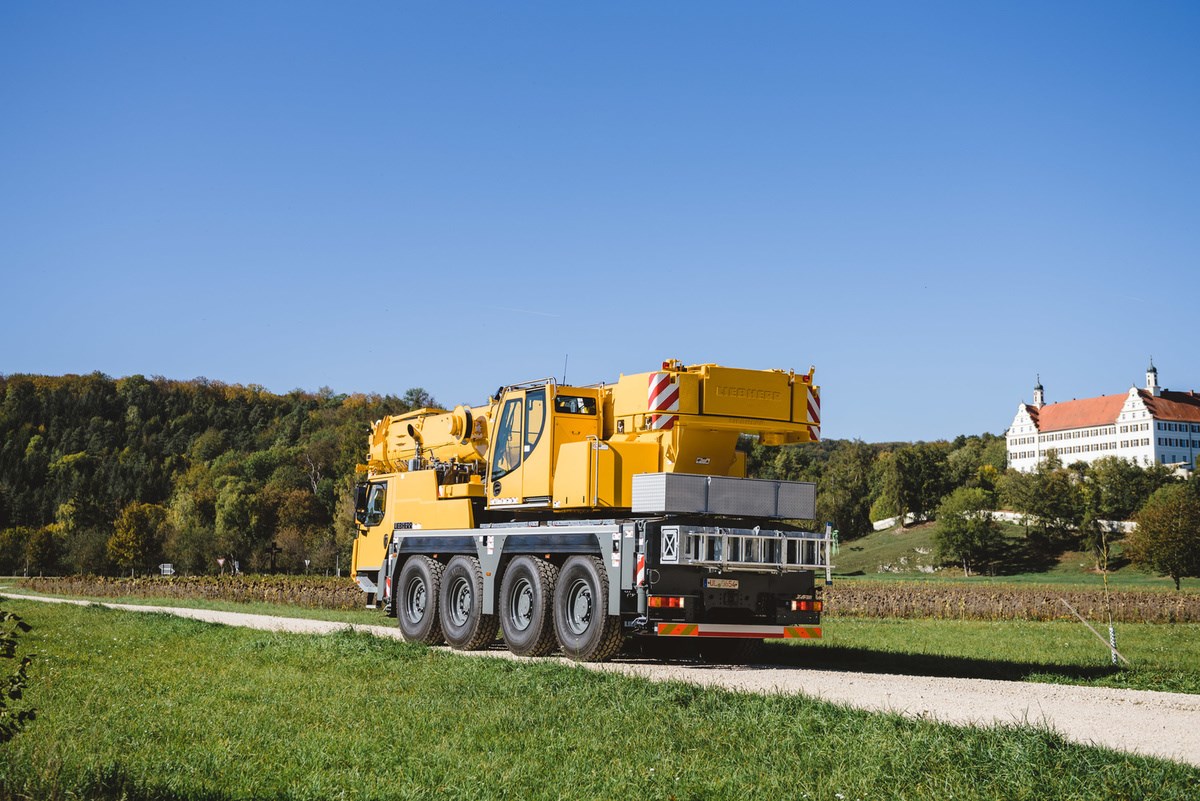

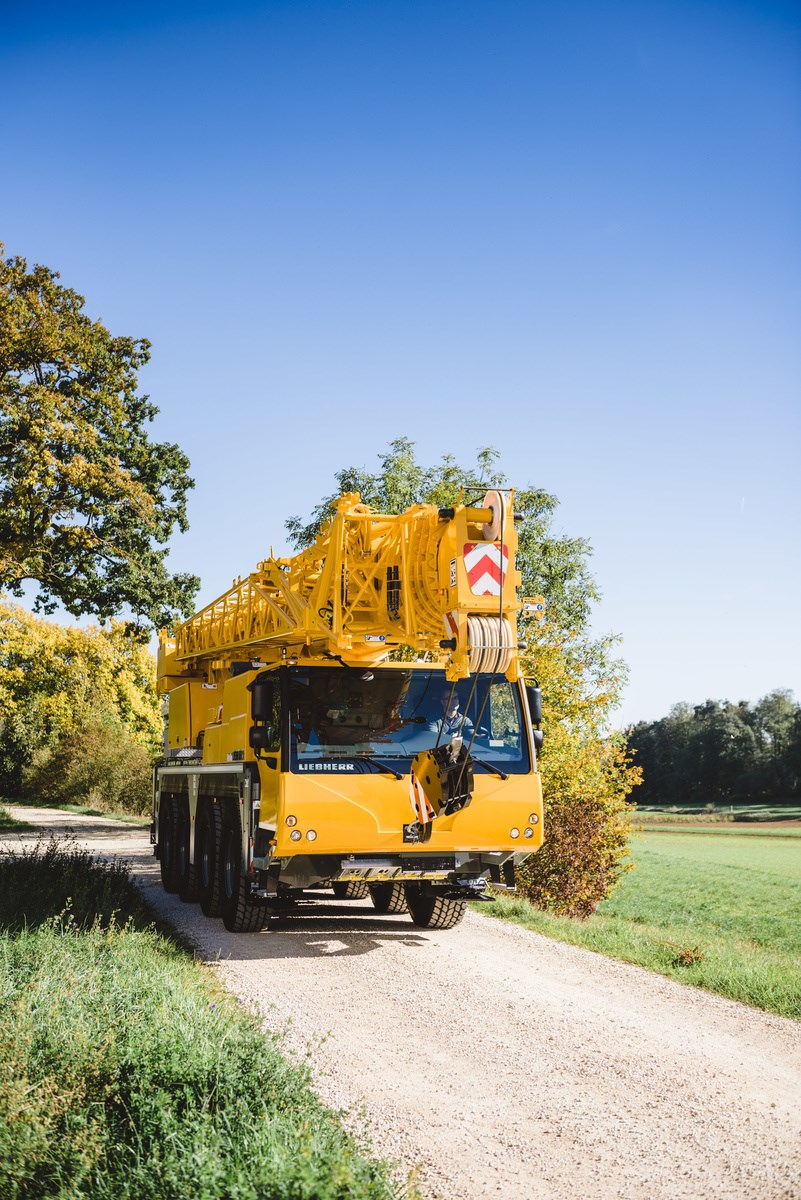

LTM 1070-4.2
Mobile crane
The 4-axle LTM 1070-4.2 carries the majority of ist ballast on it when it is on the road. This means that it is immediately ready for use once it reaches the site. It features the very latest technology such as active, speed-dependent rear-axle steering and pneumatic disk brakes .
[/vc_column_text] Max. load capacity 70 t Technical Data – Mobile crane LTM 1070-4.2 [ft/lbs] Technical Data – Mobile crane LTM 1070-4.2 [m/t]
at radius 2.50 m
Telescopic boom from 11.00 m
Telescopic boom up to 50.00 m
Lattice jib from 9.5 m
Lattice jib up to 16.0 m
Drive engine/make Liebherr
Drive engine 6-Zylinder-Diesel
Drive engine/power 300 kW
Number of axles 4
Drive/Steering standard 8 x 4 x 8
Drive/Steering option 8 x 6 x 8
Driving speed 85.00 km/h
Total ballast 14.50 t
» PDF (5,2 MB) .
» PDF (5 MB) .IF YOU FIND A HIGH QUALITY PRODUCT REQUEST A QUOTE.
