Max. load capacity              90 t
at radius                                3.00 m
Telescopic boom from        11.40 m
Telescopic boom up to       60.00 m
Lattice jib from                    2.0 m
Lattice jib up to                   16.0 m
Drive engine/make             Liebherr
Drive engine                         6-Zylinder-Diesel
Drive engine/power            330 kW
Number of axles                  4
Drive/Steering standard     8 x 6 x 8
Driving speed                      85.00 km/h
Total ballast                         22.50 t

VarioBase®
VarioBase makes the crane’s support system variable. It enables each outrigger to be extended to a different length. This enhances safety – particularly in constricted spaces. And what’s more, the crane’s lifting capacities are significantly increased, particularly over the outriggers and depending on the configuration.

ECOdrive

ECOdrive makes the mobile crane significantly more comfortable and quieter by reducing the engine speed. Faster gearshifting delivers greater dynamic and traction offroad. On the road, the torque from the Liebherr diesel engine is used efficiently to minimise fuel consumption.

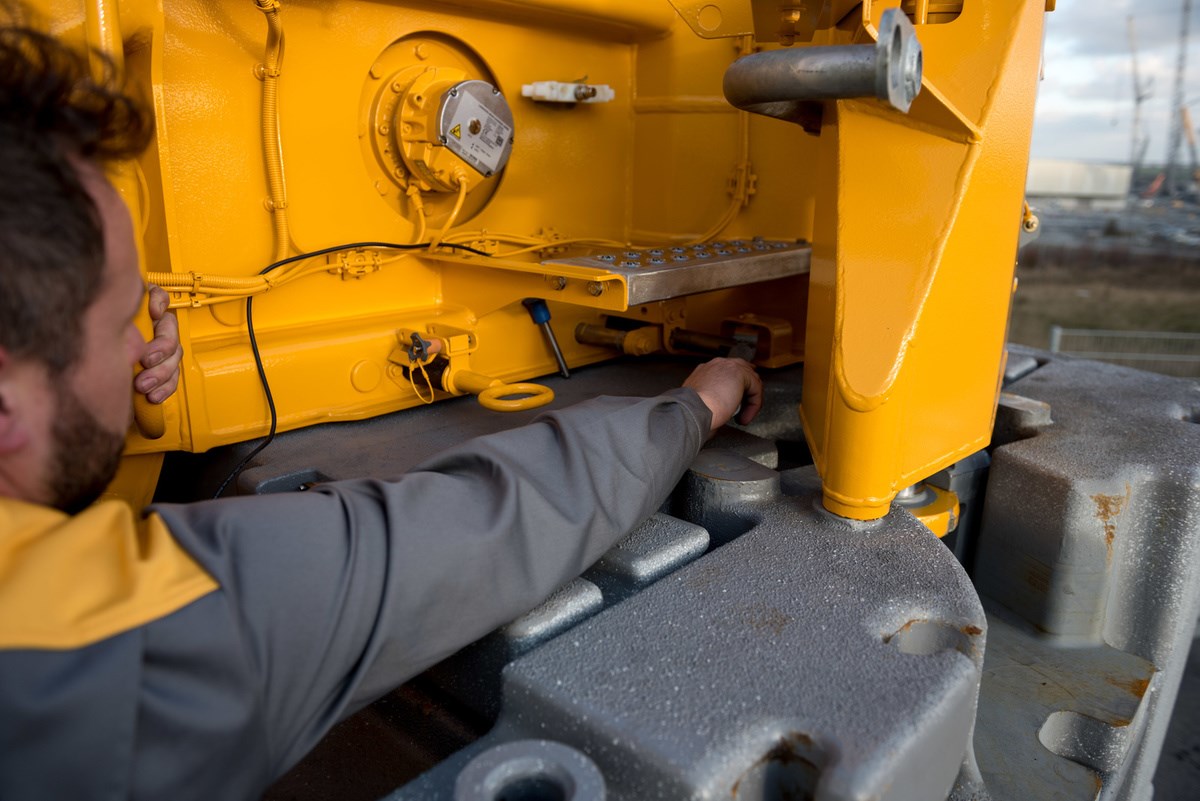

VarioBallast® (mechanical)
Mechanically slewing ballasting cylinders enable the ballast radius to be changed quickly to two different settings. The smaller radius is used in constricted conditions whilst the larger one is used if a higher lifting capacity is required. This significantly increases the crane’s flexibility.

ECOmode
ECOmode minimises both fuel consumption and noise emissions when operating the crane superstructure. The crane operator sets the required working speed using the control lever. The LICCON 2 control system calculates the perfect engine speed for the diesel engine.
