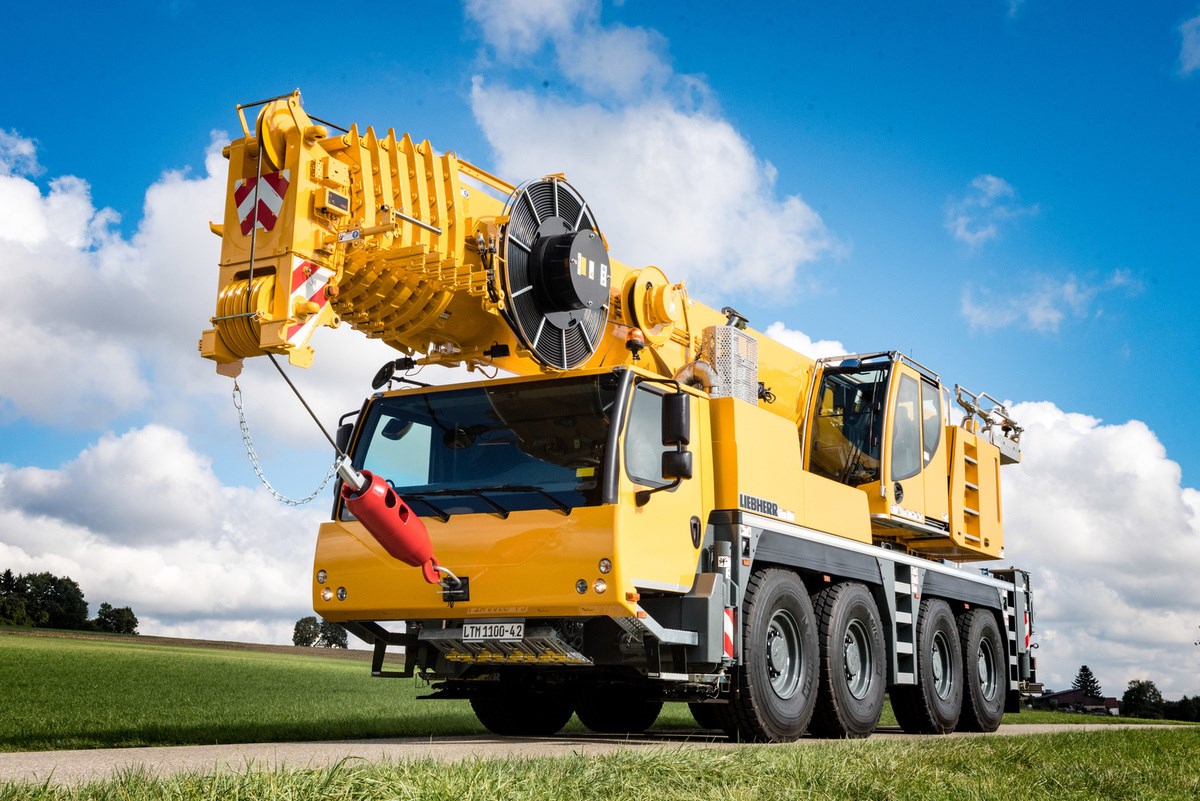

LTM 1100-4.2
Mobile crane.
Max. load capacity 100 t
Telescopic boom 60 m
Max. hoist height 91 m
Max. radius 58 m
Number of axles 4
Description
LTM 1100-4.2
Mobile crane.
The LTM 1100-4.2 delivery maximum load capacities in the 4-axle mobile crane class. The long telescopic boom can be extended with additional lattice mast sections and a double folding jib. The active rear-axle steering and pneumatic disk brakes deliver greater safety and economy.
[/vc_column_text] Max. load capacity 100 t ECOmode minimises both fuel consumption and noise emissions when operating the crane superstructure. The crane operator sets the required working speed using the control lever. The LICCON 2 control system calculates the perfect engine speed for the diesel engine.
at radius 3.00 m
Telescopic boom from 11.50 m
Telescopic boom up to 60.00 m
Lattice jib from 2.9 m
Lattice jib up to 33.0 m

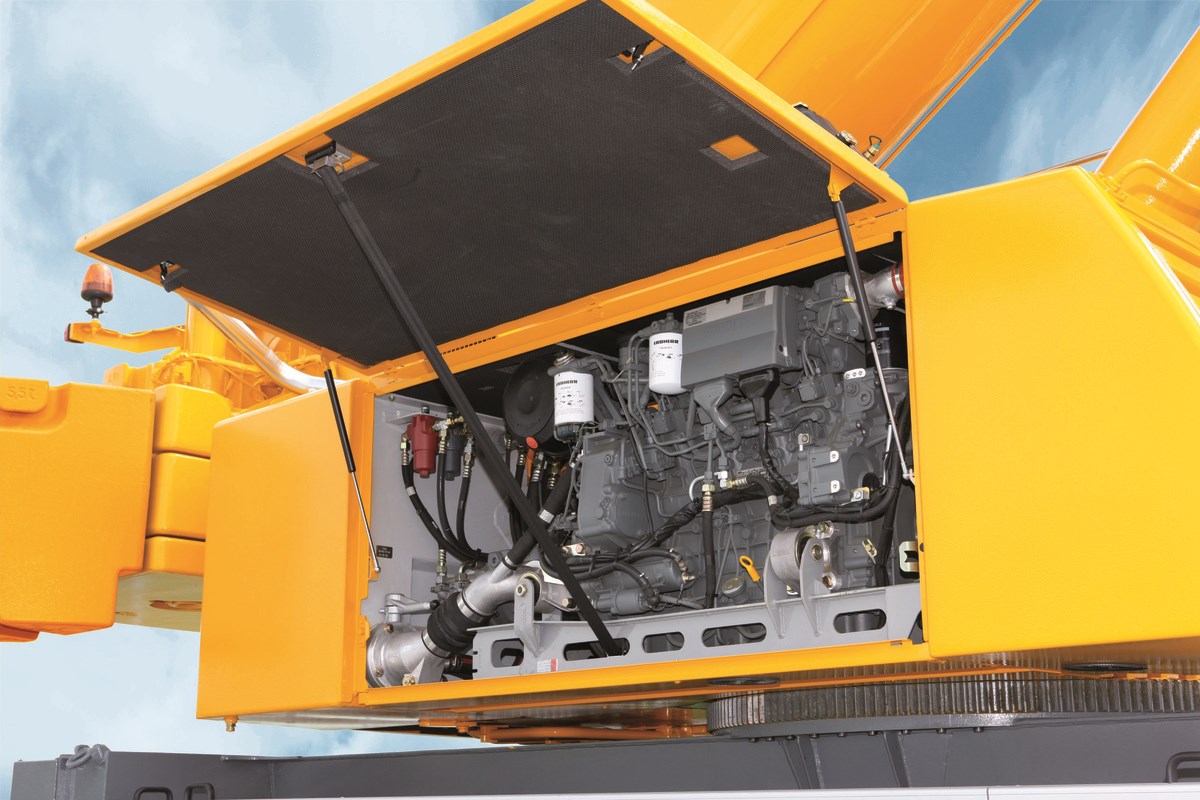

Drive engine/make Liebherr
Drive engine 6-Zylinder-Diesel
Drive engine/power 350 kW
Number of axles 4
Crane engine/make Liebherr
Crane engine 4-Zylinder-Diesel
Crane engine/power 129 kW
Drive/Steering standard 8 x 6 x 8
Drive/Steering option 8 x 8 x 8
Driving speed 85.00 km/h
Total ballast 28.20 t
VarioBase®
VarioBase makes the crane’s support system variable. It enables each outrigger to be extended to a different length. This enhances safety – particularly in constricted spaces. And what’s more, the crane’s lifting capacities are significantly increased, particularly over the outriggers and depending on the configuration.
ECOdrive
ECOdrive makes the mobile crane significantly more comfortable and quieter by reducing the engine speed. Faster gearshifting delivers greater dynamic and traction offroad. On the road, the torque from the Liebherr diesel engine is used efficiently to minimise fuel consumption.
ECOmodeIF YOU FIND A HIGH QUALITY PRODUCT REQUEST A QUOTE.
