LTM 1110-5.1
Mobile crane
Max. load capacity 110 t
Telescopic boom 60 m
Max. hoist height 91 m
Max. radius 66 m
Number of axles 5
Description
LTM 1110-5.1
Mobile crane.
Excellent lifting capacities with a really long telescopic boom. And all combined with high worldwide mobility. These are the main characteristics of the LTM 1110-5.1, which we first unveiled at the Bauma event in 2019. The 5-axle crane has a wide range of different driving states, ensuring significant benefits for driving on roads all over the world. The rear outriggers have a double-stage design and achieve a greater support width and the front ones. This gives the entire support system a trapezoidal shape. The combination of this trapezoidal support and our multi-award-winning VarioBase® variable support base is called VarioBase® Plus.
Max. load capacity 110 t Technical Data – Mobile crane LTM 1110-5.1 [m/t] Technical Data – Mobile crane LTM 1110-5.1 [m/t] Counterweight Jobsite driving VarioBase® Plus WindSpeed load charts
at radius 3.00 m
Telescopic boom from 11.50 m
Telescopic boom up to 60.00 m
Lattice jib from 2.9 m
Lattice jib up to 33.0 m
Drive engine/make Liebherr
Drive engine 6-Zylinder-Diesel
Drive engine/power 400 kW
Crane engine/make Liebherr
Number of axles 5
Drive/Steering standard 10 x 6 x 10
Drive/Steering option 10 x 8 x 10
Driving speed 85.00 km/h

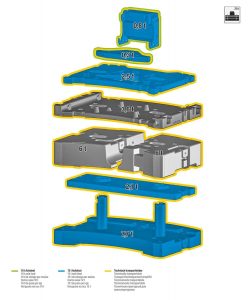

Total ballast 29.00 t
» PDF (5.6 MB) .
» PDF (5.6 MB) .

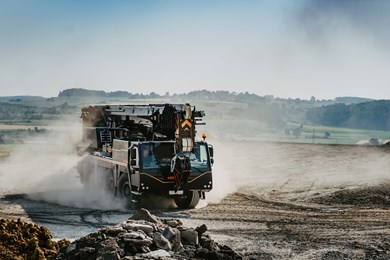

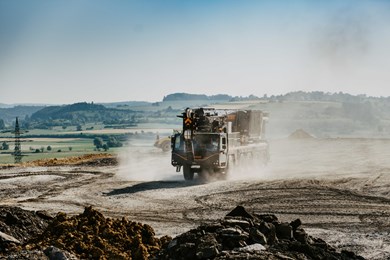

On-road driving.
The combination of VarioBase technology and the crane’s structural steelwork. A trapezoidal support combined with the various support base delivers even higher lifting capacities, particularly over the crane’s rear outriggers.
Single-engine concept
Take one engine out to increase lifting capacity. Or more accurately – the superstructure is powered by the undercarriage engine. Gear shafts are routed from the distributor gear in the substructure via two mitre gears to the pump distributor gear in the superstructure. That enables us to remove one engine – and we use this to increase the crane’s lifting capacity.
Increased flexibility and safety by using lifting capacity tables with different maximum wind speeds.
ECOdrive
ECOdrive makes the mobile crane significantly more comfortable and quieter by reducing the engine speed. Faster gearshifting delivers greater dynamic and traction offroad. On the road, the torque from the Liebherr diesel engine is used efficiently to minimise fuel consumption.
ECOmode
ECOmode minimises both fuel consumption and noise emissions when operating the crane superstructure. The crane operator sets the required working speed using the control lever. The LICCON 2 control system calculates the perfect engine speed for the diesel engine.IF YOU FIND A HIGH QUALITY PRODUCT REQUEST A QUOTE.
