Description

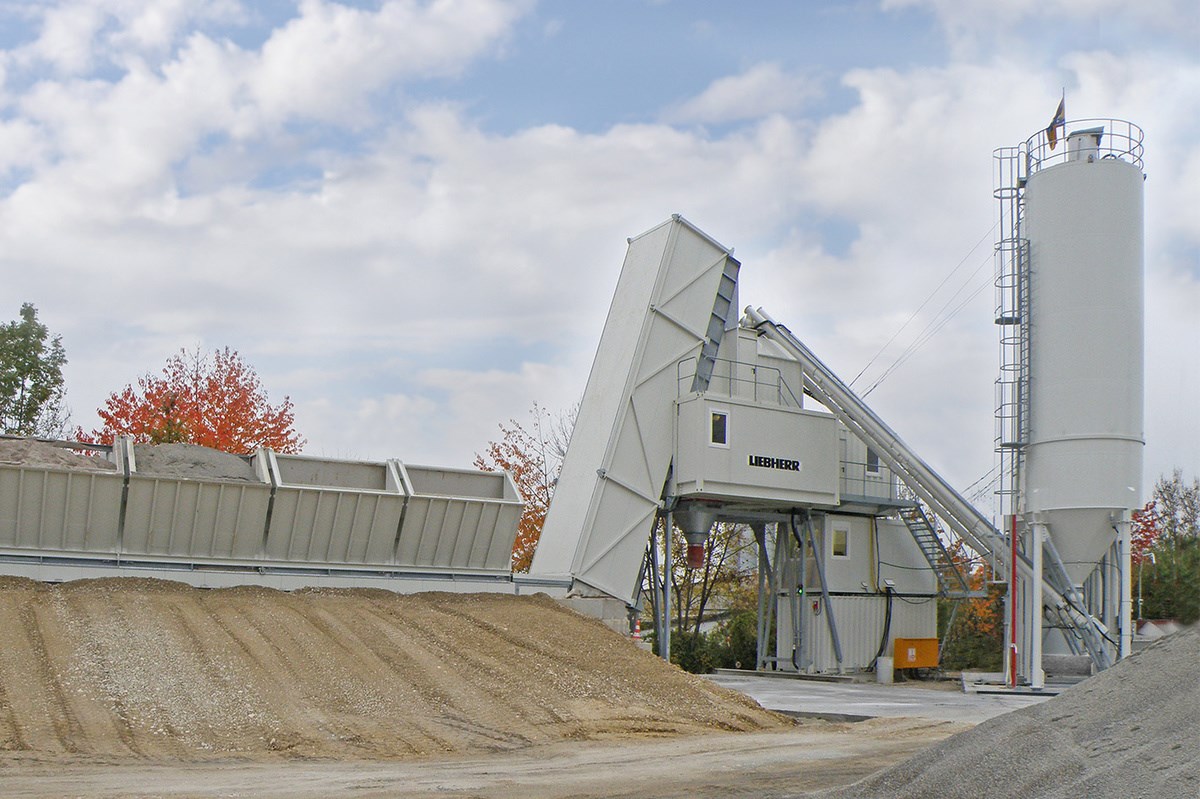

Mobilmix 2.5-C

Mobile mixing plant

The Mobilmix 2.5-C in container design can be easily transported by ready-to-plug-in container modules and quickly set up. The Mobilmix 2.5-C can be operated as a double plant with an output capacity of 230 m³ per hour.

— Technical data.

Theoretical discharge output in compacted mixed concrete                        115 m³/h
Mixer type                                                                                                             DW
Mixer size                                                                                                              2.50 m³
Max. number of aggregate chambers in-line silo                                            8
Max. aggregate storage capacity in-line silo                                                   210 m³
Max. aggregate storage capacity in-line silo per chamber                            35 m³
Max. number of cement types                                                                           6
Max. filling amount of each cement silo                                                          120 t
