Description

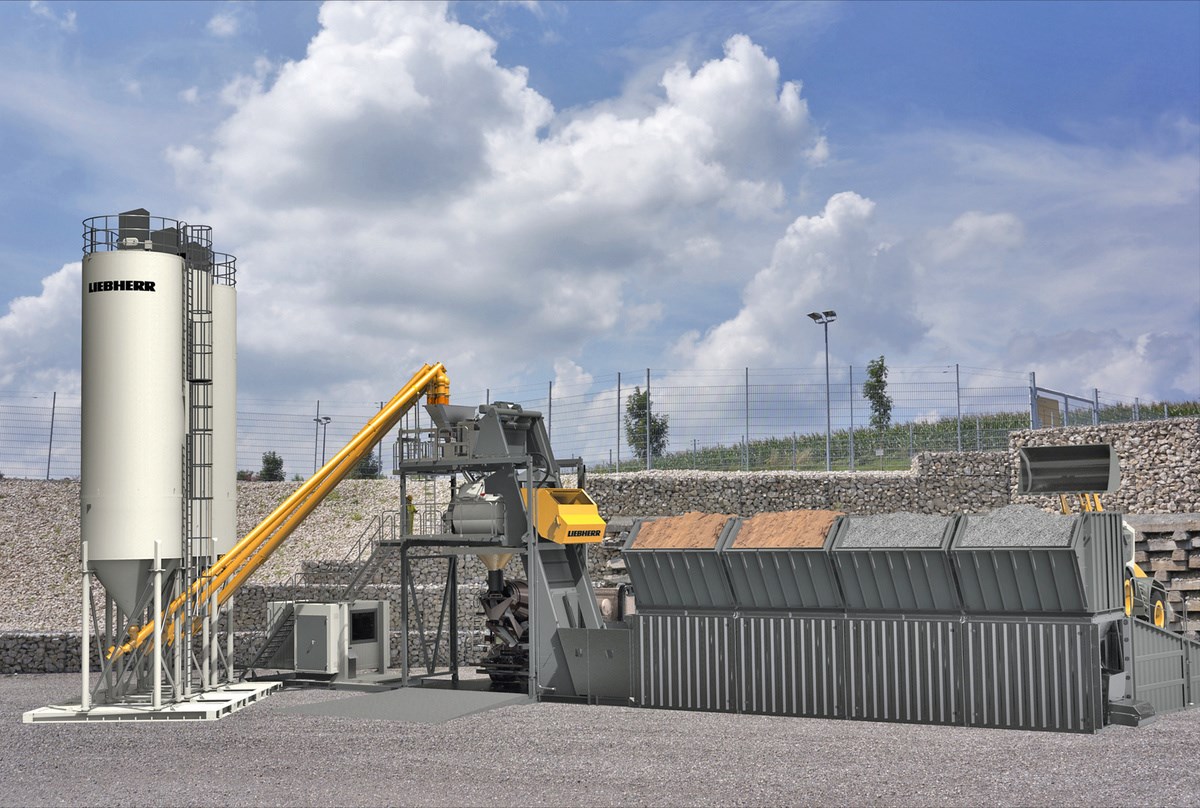

Mobilmix 2.5-F

Mobile mixing plant

The Mobilmix 2.5-F is available as a foldable plant with all subassemblies, such as steel foundations and a control container; the main components can be built within three hours.

— Technical data.

Theoretical discharge output in compacted mixed concrete                         115 m³/h
Mixer type                                                                                                              DW
Mixer size                                                                                                               2.50 m³
Max. number of aggregate chambers in-line silo                                             6
Max. aggregate storage capacity in-line silo                                                    140 m³
Max. aggregate storage capacity in-line silo per chamber                             35 m³
Max. number of aggregate chambers tower silo                                              10
Max. aggregate storage capacity tower silo                                                     600 m³
Max. number of cement types                                                                            6
Max. filling amount of each cement silo                                                           120 t

— Downloads.

— Optional equipment.

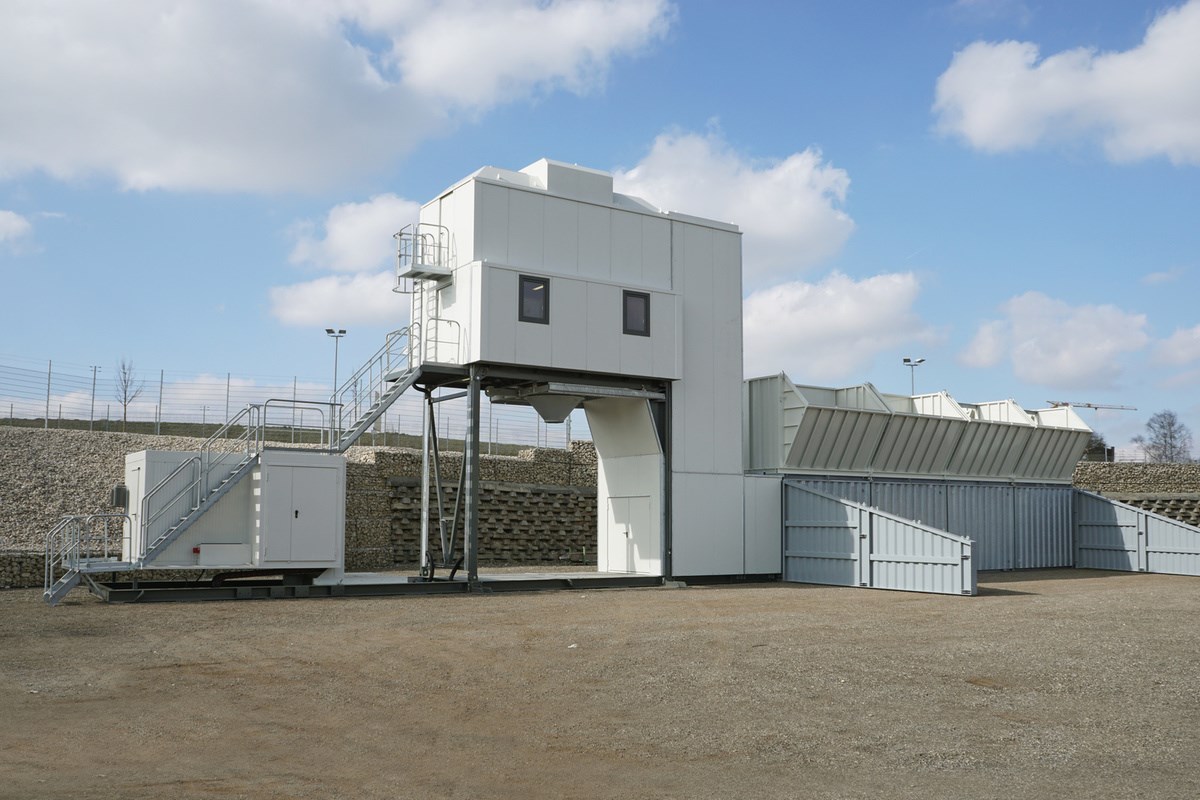

Tower silo
Up to 600 m³ of aggregates in maximal ten chambers can be stored in the tower silo. The tower silo can assembled in five hours by simply stacking the one container module on top of the other.
